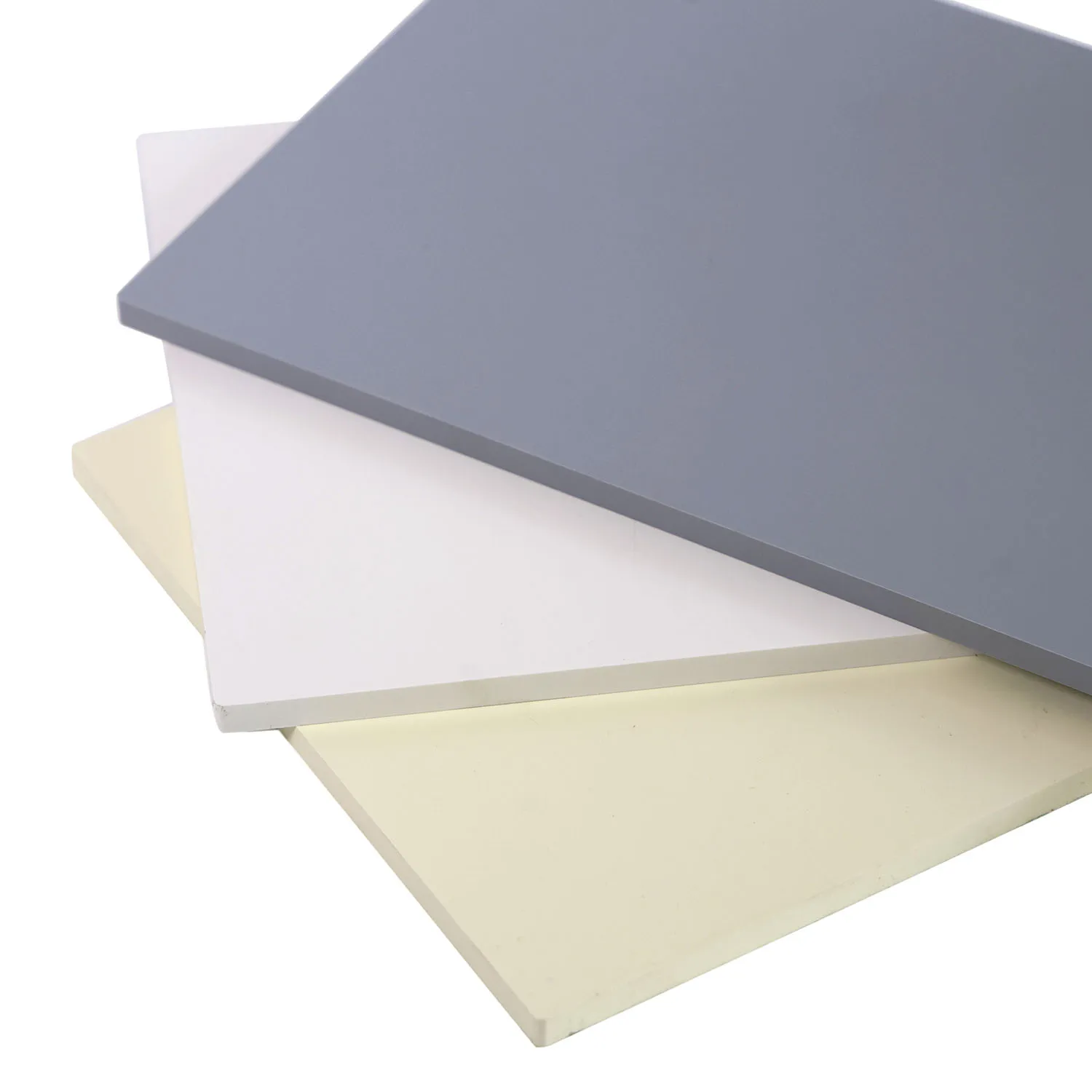

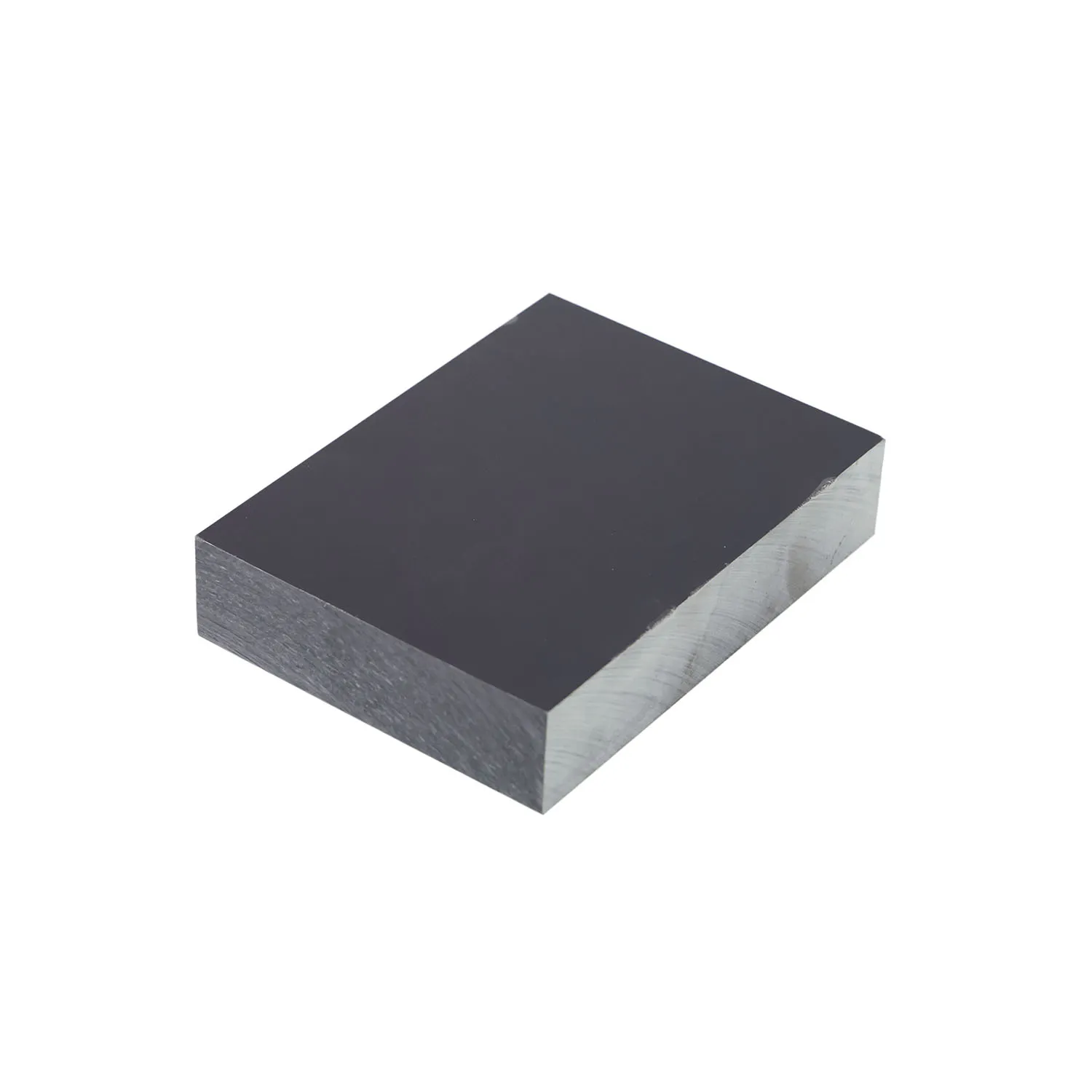

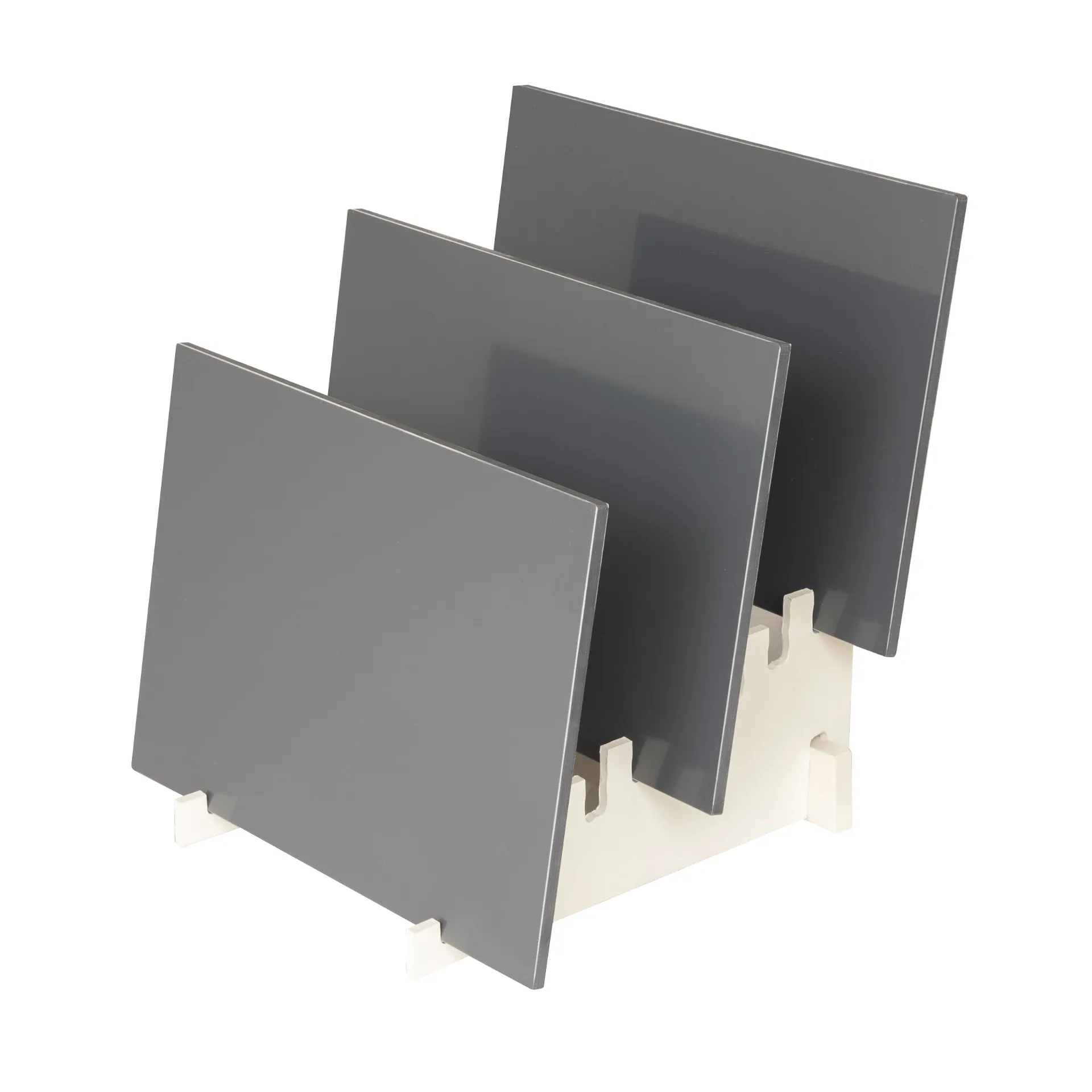

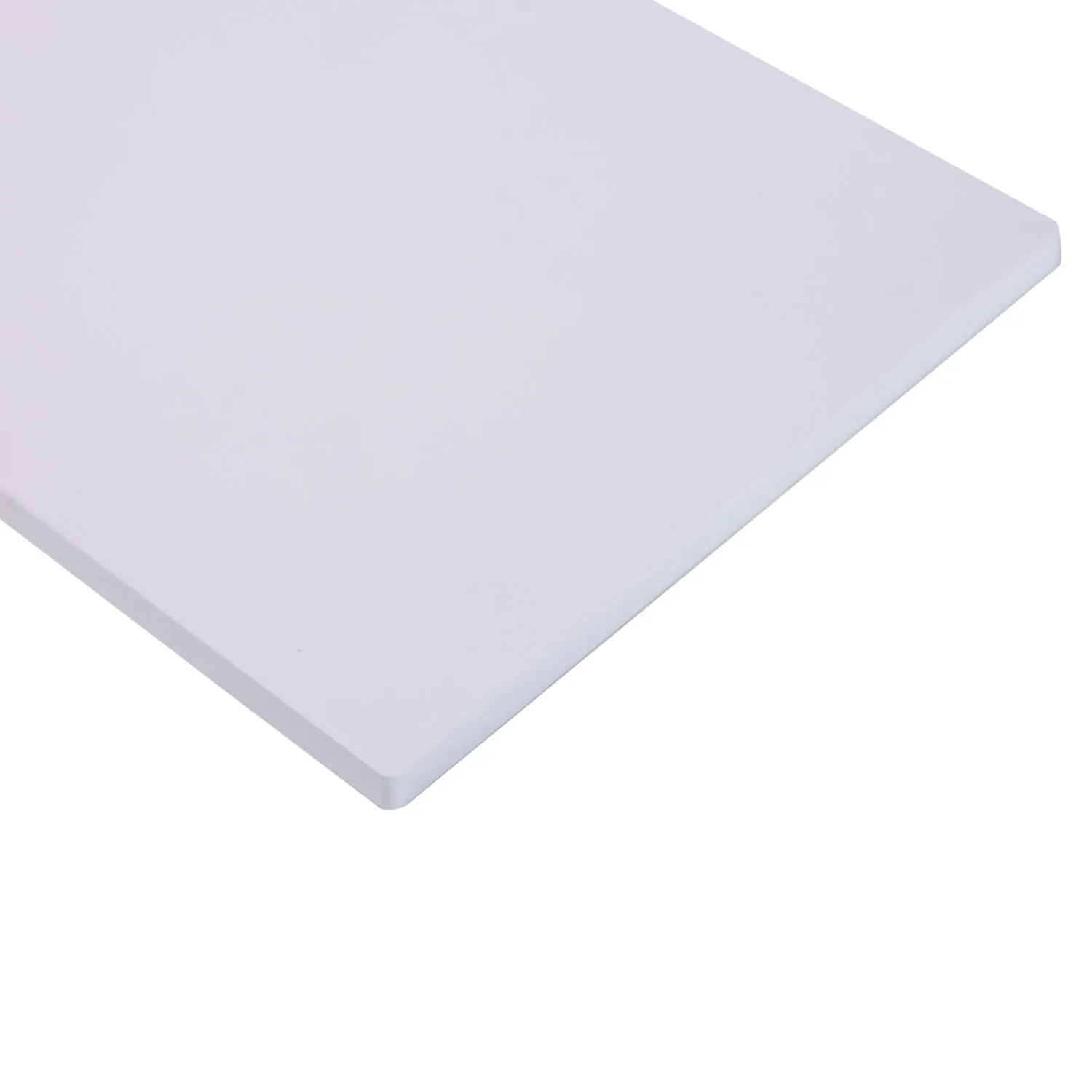

PVC Rigid Sheet(glossy surface)

Short Description:

Thickness range: 1mm~60mm
Width:  1mm~3mm:1000mm~1300mm
4mm~20mm:1000mm~1500mm
25mm~30mm: 1000mm~1300mm
35mm~60mm: 1000mm
Length: Any length.
Standard sizes: 1220mmx2440mm; 1000mmx2000mm; 1500mmx3000mm

Standard Colors: Dark grey(RAL7011), light grey, black, white, blue, green, red and any other colors according to customers’ requirements.

Surface: Glossy.



Details
Tags

Data sheet of PVC sheet

Items

Unit

Typical Value

Density

g/ cm3

1.446

Mechanical





Tensile Strength(Length/Breadth)

Mpa

47/50.9

 tensile modulus (Length/Breadth)

Mpa

2900/2910

Notch impact strength  (Length/Breadth)

       kJ/m2

5.7/5.0

Shore Hardness



D/15:78

Thermal





Vicat Softening Temperature

°C

78.2

Heat Shrinkage (Length/Breadth)

%

0.8/-2.7

Chemical





35%±1% (v/v) HCI  5h 60°C

g/ cm3

+0.55

30%±1% (v/v) H2SO4 5h 60°C

g/ cm3

+0.5

40%±1% (v/v) HNO3 5h 60°C

g/ cm3

-0.8

40%±1% (v/v) NaOH 5h 60°C

g/ cm3

+0.05

Electrical





Volume Resistivity



2.68E+13Ω·m

Other sheet formats or thicknesses of our PVC rigid sheet glossy surface are available on request
On request, we can also supply you with other sizes or colors of our rigid PVC sheets except above standard sizes and colors. Other colors and larger sheet formats with dimensions for above 1500mm width, or cut-to-size sheets in your desired size from our PVC sheets are also available on request. Simply send us your specific request by email and our staff will take care of your request as soon as possible.

Characteristics

Excellent chemical and corrosion resistance;
Excellent impact strength;
Easily to fabricate, weld or machine;
High rigidity and superior strength;
Reliable electrical insulation;
Good features for printing;
Low flammability,
Self-extinguishing.



Applications

PVC rigid sheets are widely used in general and chemical industries, such as Lab equipment, Etching equipment, Semiconductor processing equipment, plating barrels, water tank, chemical storing tank, oil tank, storing tank for brewing water, acid or alkali production tower, acid or alkali washing tower, photograph developing instruments; Electrical industries for battery box, electrometer plate, electrolytic tank and various plates for electrical insulation, signboards for advertisement, wall cladding of office and public utilities, door panels and so on.

We can also produce milled parts from our PVC rigid sheet glossy surface.
If you need individual milled parts made of our PVC rigid sheet, this is no problem, we have the CNC milling centres with CNC control. Simply send us your enquiry with a sketch or a construction drawing stating the required quantity and we will prepare a tailor-made offer for your milled parts made of our PVC sheet.
